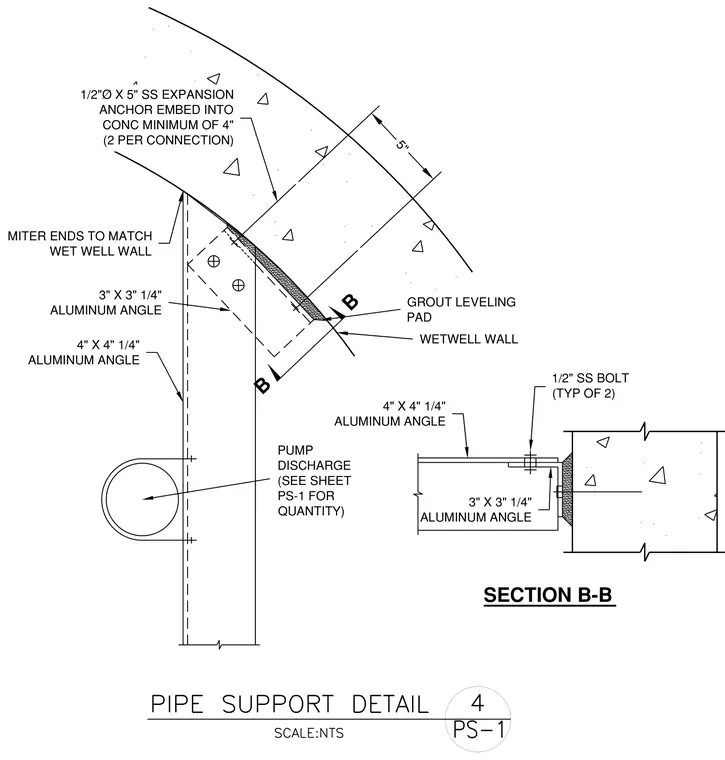

A 4-inch by 4-inch by 1/4-inch aluminum angle frames the pump discharge pipe and connects to a 3-inch by 3-inch by 1/4-inch aluminum angle. The support assembly is anchored to the concrete wet well wall using two 1/2-inch diameter by 5-inch stainless steel expansion anchors embedded a minimum of 4 inches. A grout leveling pad provides bearing beneath the angle against the curved concrete wall, with mitered ends matching the wall geometry. Half-inch stainless steel bolts secure the structural angles together.
1/2"Ø X 5" SS EXPANSION ANCHOR EMBED INTO CONC MINIMUM OF 4" (2 PER CONNECTION) 4" X 4" 1/4" ALUMINUM ANGLE WETWELL WALL MITER ENDS TO MATCH WET WELL WALL GROUT LEVELING PAD 3" X 3" 1/4" ALUMINUM ANGLE B B PUMP DISCHARGE (SEE SHEET PS-1 FOR QUANTITY) SECTION B-B 4" X 4" 1/4" ALUMINUM ANGLE 3" X 3" 1/4" ALUMINUM ANGLE 1/2" SS BOLT (TYP OF 2) 5"
