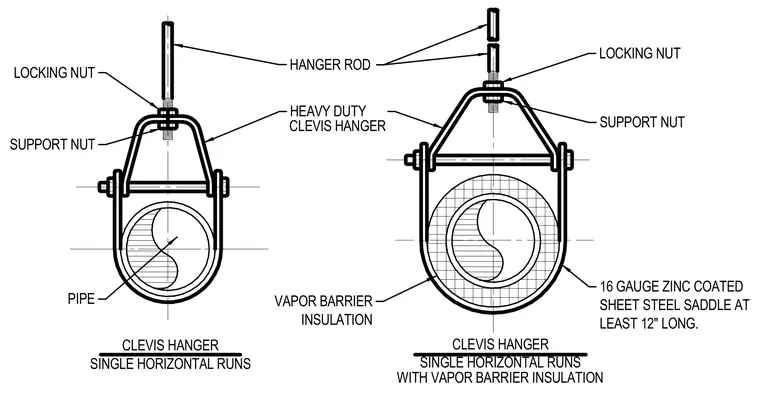

The suspended pipe is supported by a heavy-duty clevis hanger suspended from a threaded hanger rod. A support nut and locking nut secure the hanger yoke to the threaded rod. For insulated piping, a 16-gauge zinc-coated sheet steel saddle at least twelve inches long protects the vapor barrier insulation from crushing.
HANGER ROD CLEVIS HANGER HEAVY DUTY CLEVIS HANGER SINGLE HORIZONTAL RUNS PIPE SUPPORT NUT LOCKING NUT SINGLE HORIZONTAL RUNS WITH VAPOR BARRIER INSULATION CLEVIS HANGER SUPPORT NUT LOCKING NUT 16 GAUGE ZINC COATED SHEET STEEL SADDLE AT LEAST 12" LONG. VAPOR BARRIER INSULATION
