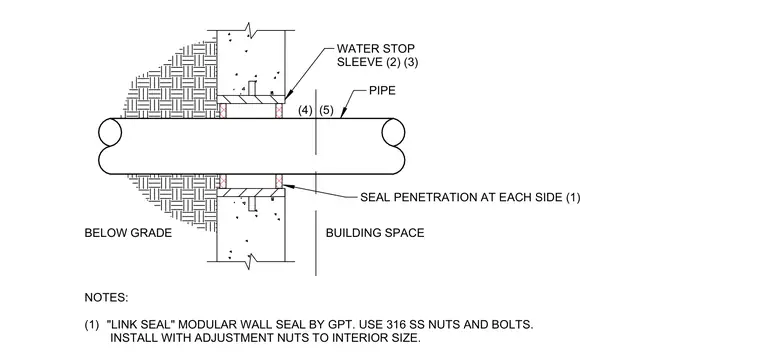

A pipe passes through a below-grade concrete foundation wall via a water stop sleeve embedded in the concrete. The annular space between the pipe and the sleeve is sealed at each side using a modular wall seal with 316 stainless steel nuts and bolts. The assembly maintains a watertight barrier between the exterior earth and the interior building space.
PIPE SEAL PENETRATION AT EACH SIDE (1) WATER STOP SLEEVE (2) (3) BUILDING SPACE BELOW GRADE NOTES: (1) "LINK SEAL" MODULAR WALL SEAL BY GPT. USE 316 SS NUTS AND BOLTS. INSTALL WITH ADJUSTMENT NUTS TO INTERIOR SIZE. (4) (5)
