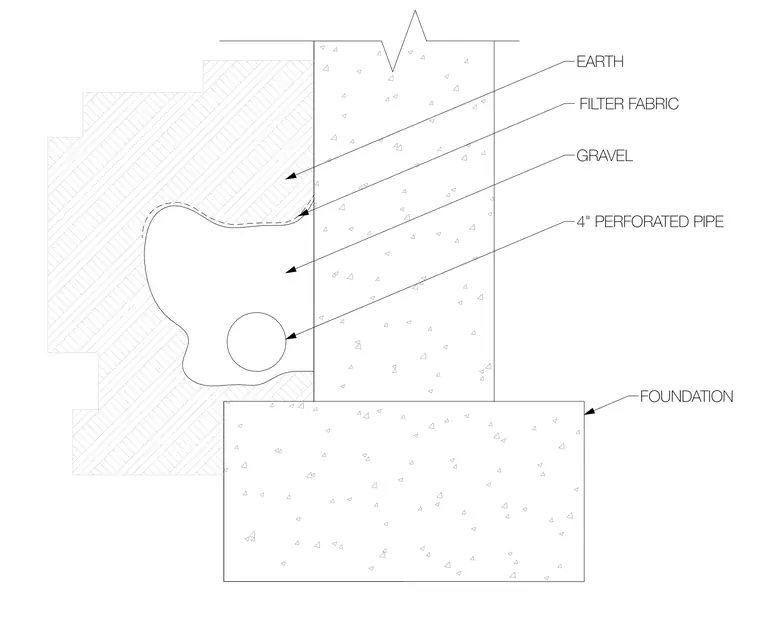

A four-inch perforated pipe sits within a bed of foundation gravel adjacent to a concrete foundation wall and footing. The gravel bed is wrapped in filter fabric to prevent silt migration from the surrounding earth backfill.
