Plumbing · P-AARV6

Gas Meter Service Connection Detail

Elements

About this detail

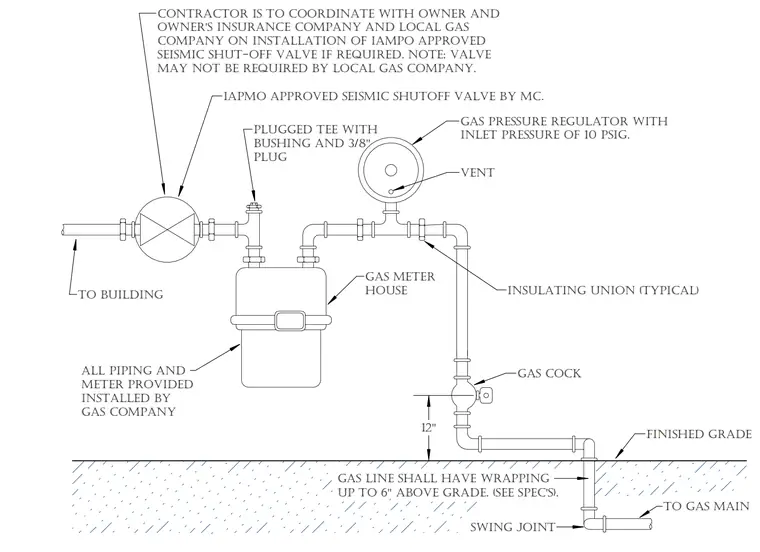

The gas service line connects from the gas main via a twelve-inch swing joint below finished grade, with protective wrapping extending up to six inches above grade. A gas cock is installed twelve inches above grade, followed by insulating unions and a gas pressure regulator with an inlet pressure of ten psig and a vent. The assembly includes a gas meter house, a plugged tee with a bushing and a three-eighths-inch plug, and an International Association of Plumbing and Mechanical Officials approved seismic shut-off valve before routing to the building. All piping and the meter are provided and installed by the gas company, with coordination required for the seismic valve.
