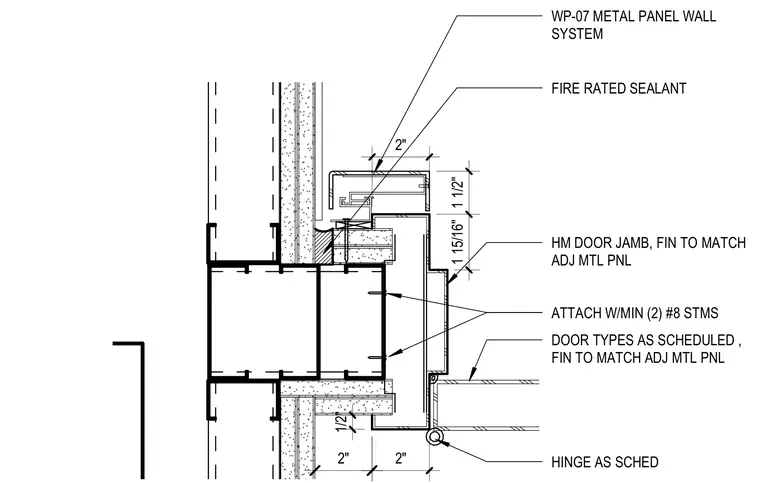

A hollow metal door jamb intersects the WP-07 metal panel wall system with a finish matching the adjacent metal panel. The frame is secured using a minimum of two number eight sheet metal screws. A fire-rated sealant is applied at the perimeter joint to maintain compartmentation. Door types and hinges are installed per the door schedule.
WP-07 METAL PANEL WALL SYSTEM DOOR TYPES AS SCHEDULED , FIN TO MATCH ADJ MTL PNL HM DOOR JAMB, FIN TO MATCH ADJ MTL PNL 2" 1 1/2" 1 15/16" FIRE RATED SEALANT 1/2" 2" ATTACH W/MIN (2) #8 STMS HINGE AS SCHED 2"
