Typical Breakroom Sink Layout

Materials

Elements

About this detail

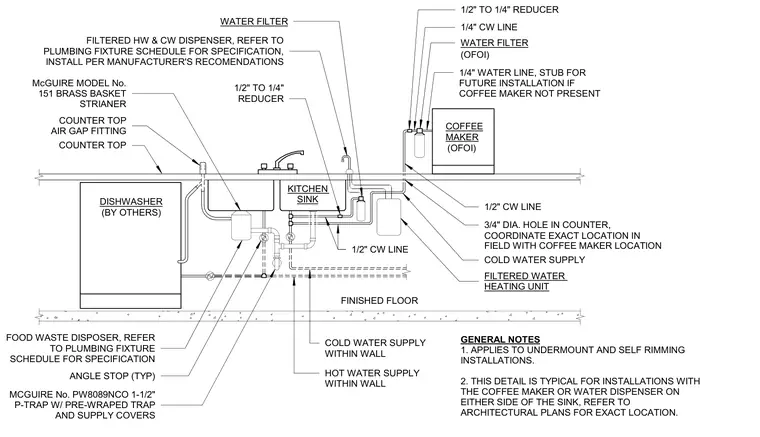

A typical breakroom sink plumbing layout includes hot and cold water supplies within the wall, angle stops, and a McGuire Model No. PW8089NCO one-and-a-half-inch P-trap with pre-wrapped trap and supply covers. The assembly features a kitchen sink with a McGuire Model No. 151 brass basket strainer, a counter top air gap fitting, a food waste disposer, and an adjacent dishwasher. Additional connections accommodate a water filter, a filtered water heating unit, and a coffee maker with a three-quarter-inch diameter hole in the counter and a one-quarter-inch water line stub for future installation.
