Plumbing · P-A6VG4

Exterior Two-Way Cleanout

Materials

Elements

Stairs Drainage Millwork / Casework Site / Paving Reinforcing

About this detail

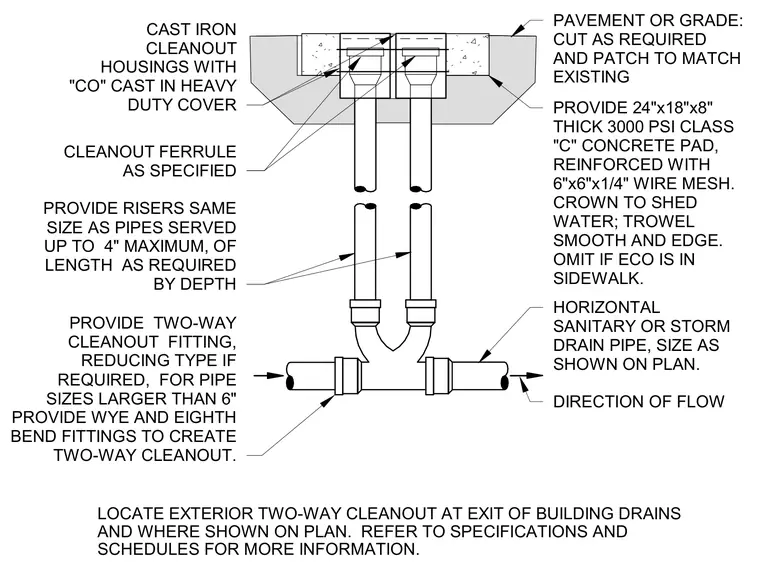

Locate exterior two-way cleanout at the exit of building drains and where shown on plan, referencing specifications and direction of flow. The assembly incorporates cast iron cleanout housings with "CO" cast in a heavy-duty cover and cleanout ferrule as specified. Provide risers the same size as pipes served up to four inches maximum, of length as required by depth. Provide a two-way cleanout fitting, reducing type if required, or for pipe sizes larger than six inches provide wye and eighth bend fittings to create a two-way cleanout. At pavement or grade, cut as required and patch to match existing, providing a twenty-four by eighteen by eight-inch thick three-thousand PSI Class "C" concrete pad reinforced with six by six by one-quarter inch wire mesh. Crown the pad to shed water, trowel smooth, and edge, omitting if the exterior cleanout is in a sidewalk. Connect to horizontal sanitary or storm drain pipe, sized as shown on plan.
