A wall-hung plumbing sink carrier is secured to a concrete floor slab using one-half inch by two-and-one-quarter-inch Hilti Kwik Hus-Ez concrete anchors, with four anchors specified per leg. The upright carrier assembly stands thirty-six inches high with five-eighths inch diameter carrier studs fastened by typical acorn nuts to support the sink fixture. The sink rim height is positioned at a maximum of thirty inches above the finished floor per architectural plans, accommodating a maximum load capacity of two hundred pounds. Base mounting plates are anchored with specified edge distances and spacing relative to the finished wall and floor planes.

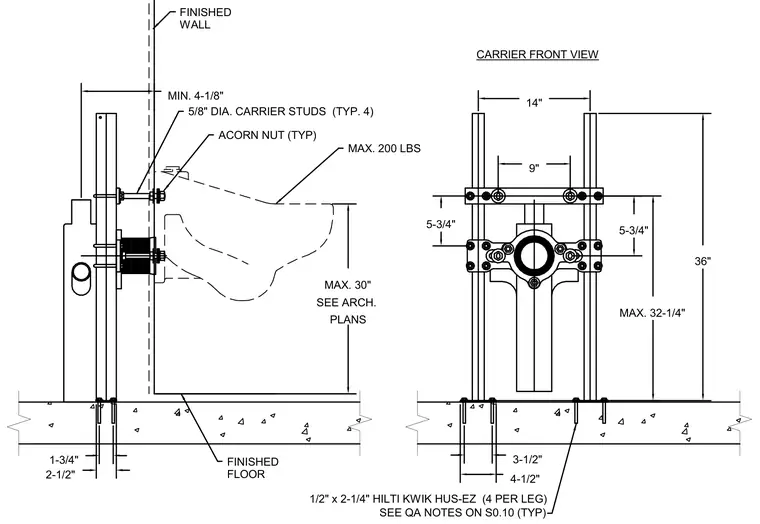

1-3/4" 2-1/2" MIN. 4-1/8" 9" 14" 5-3/4" 36" 5-3/4" MAX. 32-1/4" MAX. 30" SEE ARCH. PLANS 3-1/2" 4-1/2" FINISHED FLOOR FINISHED WALL MAX. 200 LBS 5/8" DIA. CARRIER STUDS (TYP. 4) ACORN NUT (TYP) CARRIER FRONT VIEW 1/2" x 2-1/4" HILTI KWIK HUS-EZ (4 PER LEG) SEE QA NOTES ON S0.10 (TYP)
