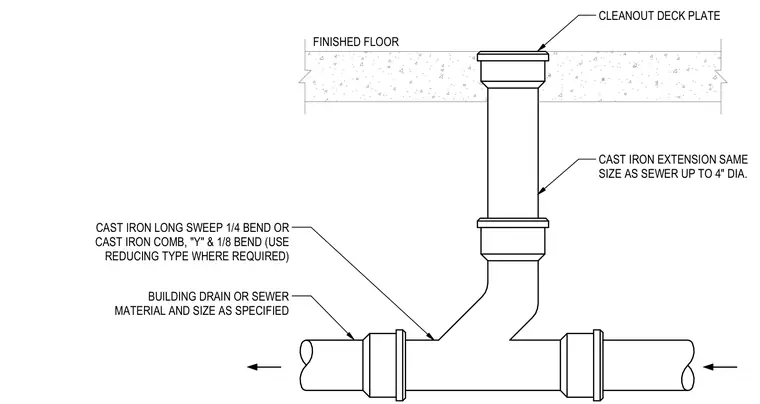

A cast iron extension connects the finished floor cleanout deck plate to a cast iron long sweep quarter bend or a combination wye and eighth bend on the building drain or sewer piping. Reducing types are used where required to match the sewer diameter up to four inches.
FINISHED FLOOR CAST IRON EXTENSION SAME SIZE AS SEWER UP TO 4" DIA. BUILDING DRAIN OR SEWER MATERIAL AND SIZE AS SPECIFIED CAST IRON LONG SWEEP 1/4 BEND OR CAST IRON COMB, "Y" & 1/8 BEND (USE REDUCING TYPE WHERE REQUIRED) CLEANOUT DECK PLATE
