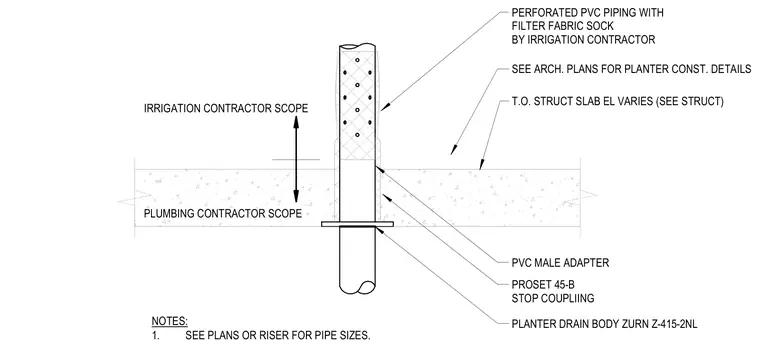

A Zurn Z-415-2NL planter drain body connects to a PVC male adapter and perforated PVC piping wrapped in a filter fabric sock. A ProSet 45-B stop coupling secures the pipe penetration through the top of the structural concrete slab. The demarcation between plumbing and irrigation contractor scopes is coordinated at the slab penetration. Pipe sizes and structural slab elevations vary per plans.
NOTES: 1. SEE PLANS OR RISER FOR PIPE SIZES. PLANTER DRAIN BODY ZURN Z-415-2NL T.O. STRUCT SLAB EL VARIES (SEE STRUCT) PROSET 45-B STOP COUPLIING PERFORATED PVC PIPING WITH FILTER FABRIC SOCK BY IRRIGATION CONTRACTOR PVC MALE ADAPTER SEE ARCH. PLANS FOR PLANTER CONST. DETAILS IRRIGATION CONTRACTOR SCOPE PLUMBING CONTRACTOR SCOPE
