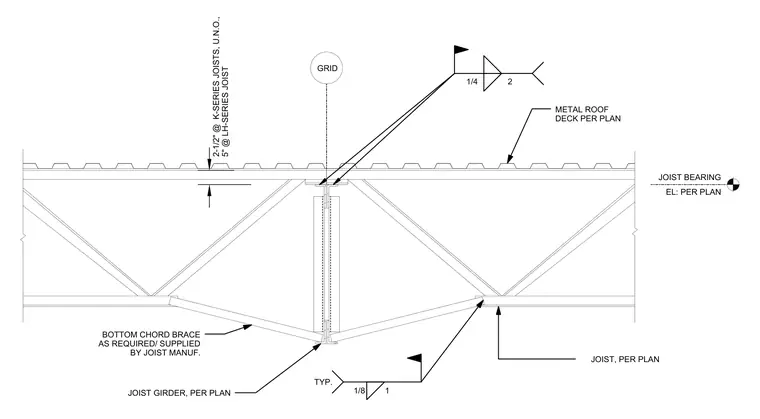

An LH-series open-web steel joist bears on a joist girder positioned at the column grid line, supporting a metal roof deck sized per plan. Bottom chord bracing is provided as required and supplied by the joist manufacturer. Field welds connect the assembly according to structural notations and typical details.
GRID 2-1/2" @ K-SERIES JOISTS, U.N.O., 5" @ LH-SERIES JOIST METAL ROOF DECK PER PLAN BOTTOM CHORD BRACE AS REQUIRED/ SUPPLIED BY JOIST MANUF. JOIST, PER PLAN JOIST GIRDER, PER PLAN JOIST BEARING EL: PER PLAN 1/8 1 TYP. 1/4 2
