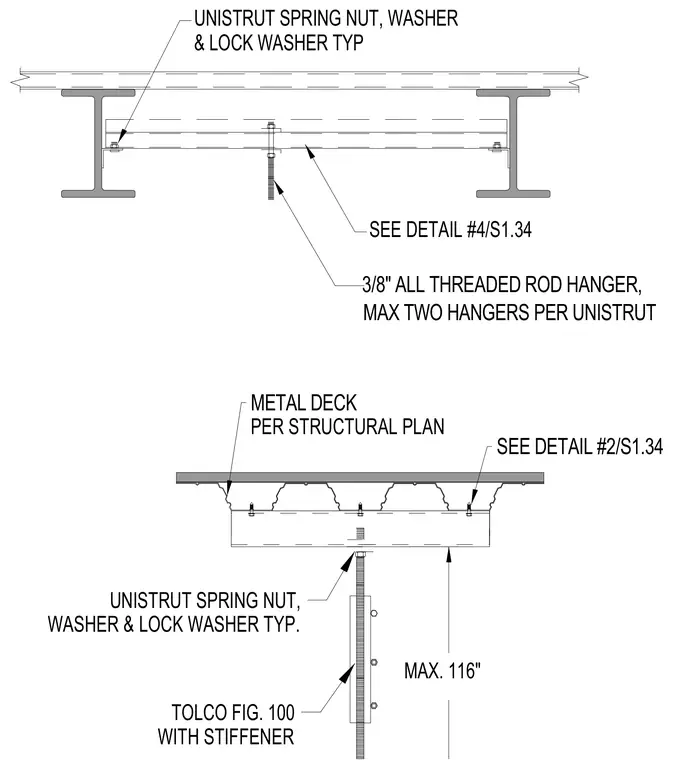

A three-eighths-inch all-threaded rod hanger is suspended below a metal deck per the structural plan with a maximum length of one hundred sixteen inches. The attachment uses a Unistrut channel secured with Unistrut spring nuts, washers, and lock washers typically. A Tolco Fig. 100 with a stiffener provides additional support along the threaded rod. A maximum of two hangers are permitted per Unistrut channel.
TOLCO FIG. 100 WITH STIFFENER UNISTRUT SPRING NUT, WASHER & LOCK WASHER TYP. UNISTRUT SPRING NUT, WASHER & LOCK WASHER TYP 3/8" ALL THREADED ROD HANGER, MAX TWO HANGERS PER UNISTRUT SEE DETAIL #4/S1.34 MAX. 116" METAL DECK SEE DETAIL #2/S1.34 PER STRUCTURAL PLAN
