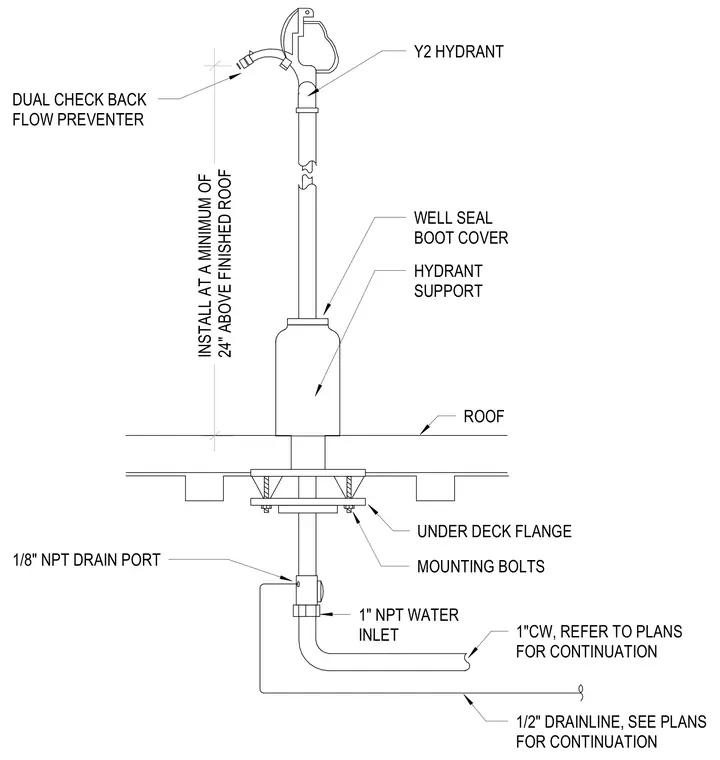

The Y2 roof hydrant is mounted through the roof assembly and supported by a well seal boot cover and hydrant support. The assembly is installed at a minimum of twenty-four inches above the finished roof and is equipped with a dual check backflow preventer. Under the roof deck, the unit is secured with an under-deck flange and mounting bolts. The lower section includes a one-inch National Pipe Thread water inlet connected to one-inch cold water piping and a one-eighth inch National Pipe Thread drain port connected to a half-inch drain line.
Y2 HYDRANT WELL SEAL BOOT COVER HYDRANT SUPPORT INSTALL AT A MINIMUM OF 24" ABOVE FINISHED ROOF DUAL CHECK BACK FLOW PREVENTER ROOF 1/2" DRAINLINE, SEE PLANS FOR CONTINUATION 1"CW, REFER TO PLANS FOR CONTINUATION MOUNTING BOLTS UNDER DECK FLANGE 1/8" NPT DRAIN PORT 1" NPT WATER INLET
