An adjustable floor cleanout body sits flush with the finished concrete floor, fitted with a bronze scoriated top and a countersunk plug. Piping extends down through the slab using no-hub connections to a combination or long sweep 90-degree elbow at the end of the run. Field verification is required for special access housings and tops, and pipe materials must conform to the project specifications.

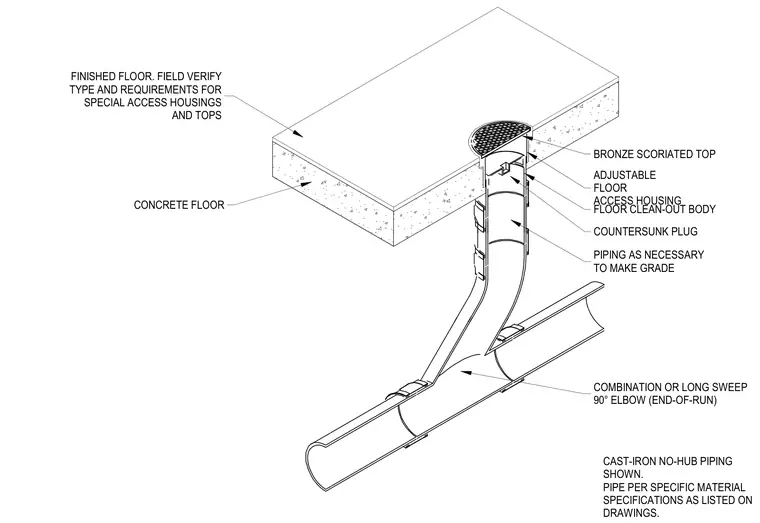

BRONZE SCORIATED TOP ADJUSTABLE FLOOR ACCESS HOUSING FLOOR CLEAN-OUT BODY COUNTERSUNK PLUG PIPING AS NECESSARY TO MAKE GRADE COMBINATION OR LONG SWEEP 90° ELBOW (END-OF-RUN) CAST-IRON NO-HUB PIPING SHOWN. PIPE PER SPECIFIC MATERIAL SPECIFICATIONS AS LISTED ON DRAWINGS. CONCRETE FLOOR FINISHED FLOOR. FIELD VERIFY TYPE AND REQUIREMENTS FOR SPECIAL ACCESS HOUSINGS AND TOPS
