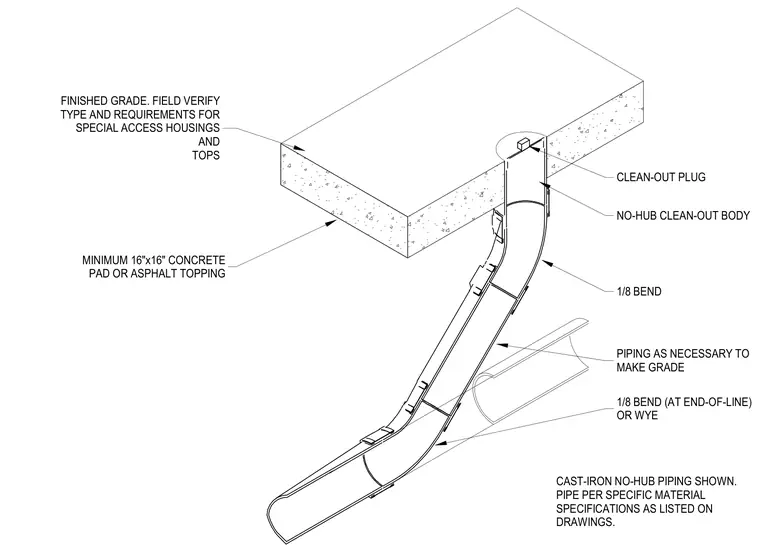

A clean-out plug seals the top of a no-hub clean-out body that connects to cast-iron piping via an one-eighth bend. Piping extends down using additional bends and wyes as necessary to meet grade requirements. The entire assembly is surrounded by a minimum sixteen by sixteen inch concrete pad or asphalt topping at the finished grade.
CLEAN-OUT PLUG NO-HUB CLEAN-OUT BODY 1/8 BEND PIPING AS NECESSARY TO MAKE GRADE 1/8 BEND (AT END-OF-LINE) OR WYE CAST-IRON NO-HUB PIPING SHOWN. PIPE PER SPECIFIC MATERIAL SPECIFICATIONS AS LISTED ON DRAWINGS. MINIMUM 16"x16" CONCRETE PAD OR ASPHALT TOPPING FINISHED GRADE. FIELD VERIFY TYPE AND REQUIREMENTS FOR SPECIAL ACCESS HOUSINGS AND TOPS
