An adjustable hanger ring supports suspended piping using either a Tolco Fig. 200 or B-Line B3170NF adjustable hanger ring assembly. The ring cradles the pipe from below, while the top strap secures around a threaded suspension rod anchored overhead. Hex nuts secure the threaded rod at the top of the hanger bracket.

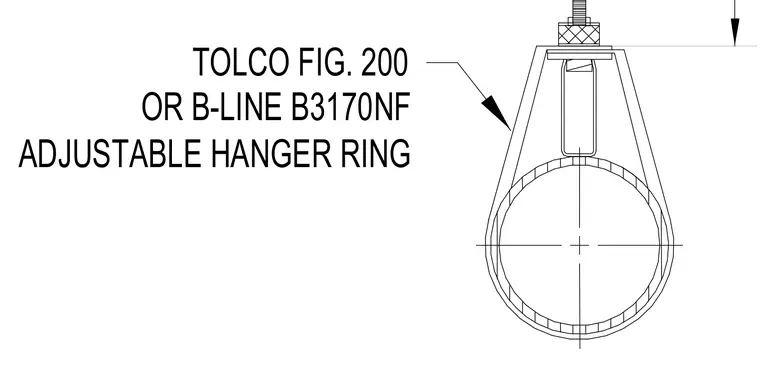

TOLCO FIG. 200 OR B-LINE B3170NF ADJUSTABLE HANGER RING
