The assembly features an adjustable scoriated secured top aligned flush with the finished floor. A thread shield is included for illustration purposes, protecting the internal threads. A gas and watertight tapered thread plug seals the cleanout stack. The vertical housing connects down into a no-hub piping system via a sanitary tee fitting.

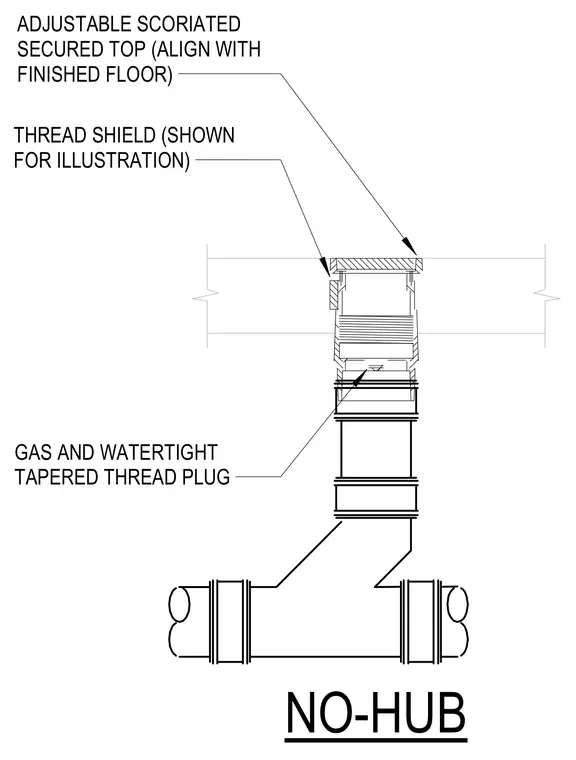

ADJUSTABLE SCORIATED SECURED TOP (ALIGN WITH FINISHED FLOOR) THREAD SHIELD (SHOWN FOR ILLUSTRATION) GAS AND WATERTIGHT TAPERED THREAD PLUG NO-HUB
