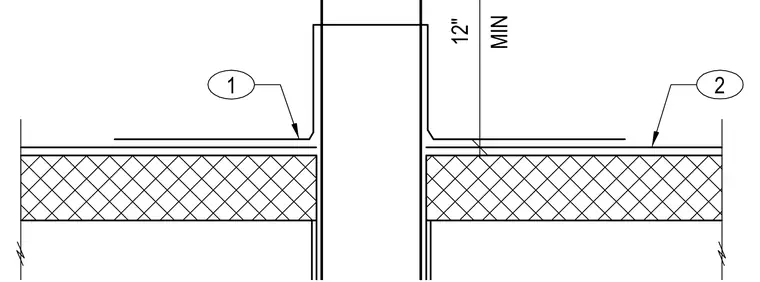

A pipe penetrates through a roof assembly featuring insulation and a membrane deck. Flashing extends up the pipe to a minimum height of twelve inches above the roof surface. Counterflashing and seals are arranged around the vertical pipe penetration to maintain weatherproofing.
