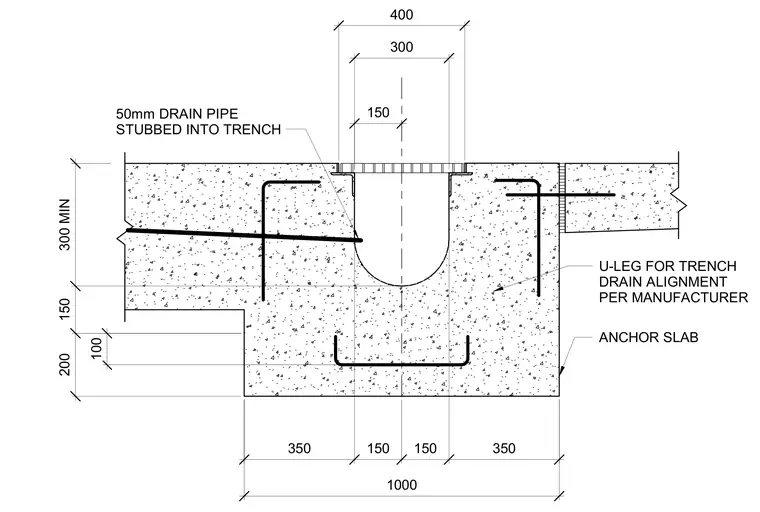

A preformed trench drain channel is embedded within a reinforced concrete anchor slab measuring 1000mm in total width with a 300mm minimum depth. A 50mm drain pipe stubs directly into the side of the trench. Alignment U-legs secure the trench drain assembly according to the manufacturer specifications. Reinforcing steel is positioned within the anchor slab surrounding the drain body.
350 150 150 350 1000 150 300 400 200 150 300 MIN U-LEG FOR TRENCH DRAIN ALIGNMENT PER MANUFACTURER ANCHOR SLAB 100 50mm DRAIN PIPE STUBBED INTO TRENCH
