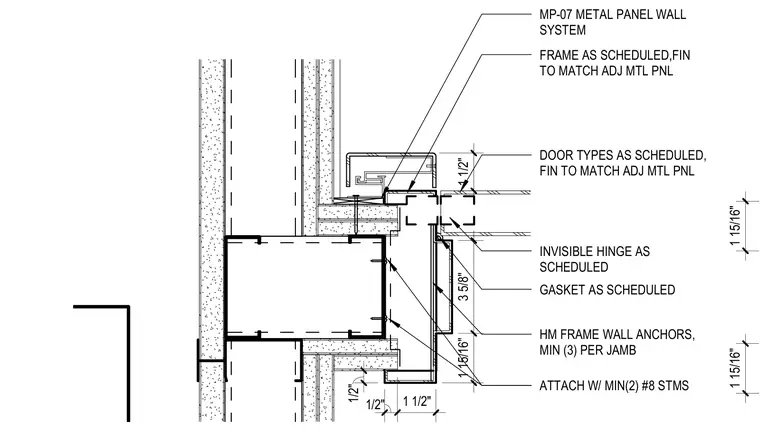

A door frame is integrated into an MP-07 metal panel wall system with a finish to match adjacent metal panels. The hollow metal frame is secured with a minimum of three wall anchors per jamb, each attached with a minimum of two number eight sheet metal screws. The assembly incorporates an invisible hinge as scheduled and a gasket as scheduled.
FRAME AS SCHEDULED,FIN TO MATCH ADJ MTL PNL MP-07 METAL PANEL WALL SYSTEM DOOR TYPES AS SCHEDULED, FIN TO MATCH ADJ MTL PNL INVISIBLE HINGE AS SCHEDULED GASKET AS SCHEDULED HM FRAME WALL ANCHORS, MIN (3) PER JAMB ATTACH W/ MIN(2) #8 STMS 1 1/2" 1/2" 1/2" 1 1/2" 1 15/16" 3 5/8" 1 15/16" 1 15/16"
