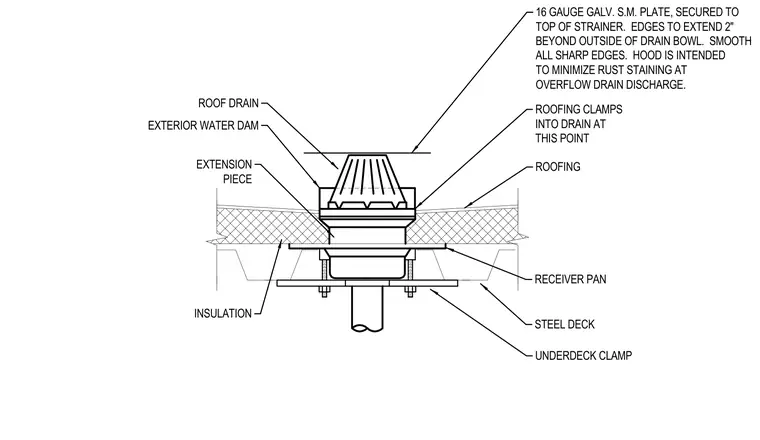

An overflow roof drain assembly penetrates a steel deck topped with insulation and roofing. The roof drain features an exterior water dam and an extension piece supported by a receiver pan beneath the deck. An underdeck clamp secures the assembly to the structural steel deck. A sixteen-gauge galvanized sheet metal hood is secured to the top of the strainer and extends two inches beyond the outside of the drain bowl with smoothed sharp edges to minimize rust staining at the overflow discharge.
ROOFING THIS POINT INTO DRAIN AT ROOFING CLAMPS PIECE EXTENSION ROOF DRAIN RECEIVER PAN UNDERDECK CLAMP STEEL DECK INSULATION OVERFLOW DRAIN DISCHARGE. TO MINIMIZE RUST STAINING AT ALL SHARP EDGES. HOOD IS INTENDED BEYOND OUTSIDE OF DRAIN BOWL. SMOOTH TOP OF STRAINER. EDGES TO EXTEND 2" 16 GAUGE GALV. S.M. PLATE, SECURED TO EXTERIOR WATER DAM
