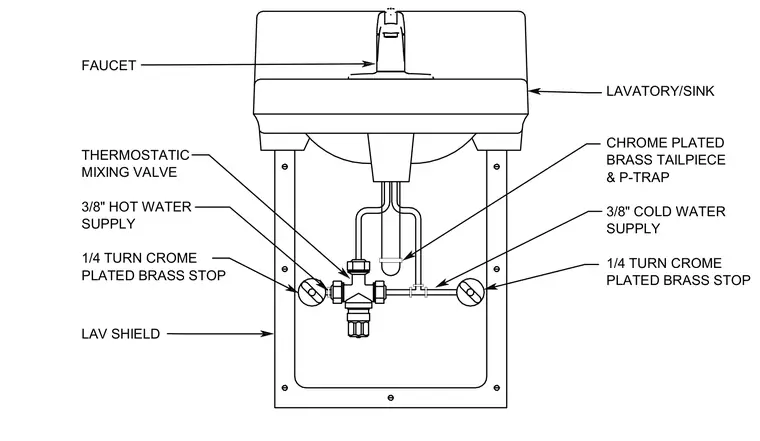

A thermostatic mixing valve connects to three-eighths-inch hot and cold water supplies equipped with one-quarter turn chrome-plated brass stops. The fixture includes a lavatory sink with a chrome-plated brass tailpiece and P-trap assembly. A protective lavatory shield encloses the under-sink piping configuration.
FAUCET 3/8" COLD WATER SUPPLY LAVATORY/SINK CHROME PLATED BRASS TAILPIECE & P-TRAP 1/4 TURN CROME PLATED BRASS STOP 3/8" HOT WATER SUPPLY 1/4 TURN CROME PLATED BRASS STOP THERMOSTATIC MIXING VALVE LAV SHIELD
