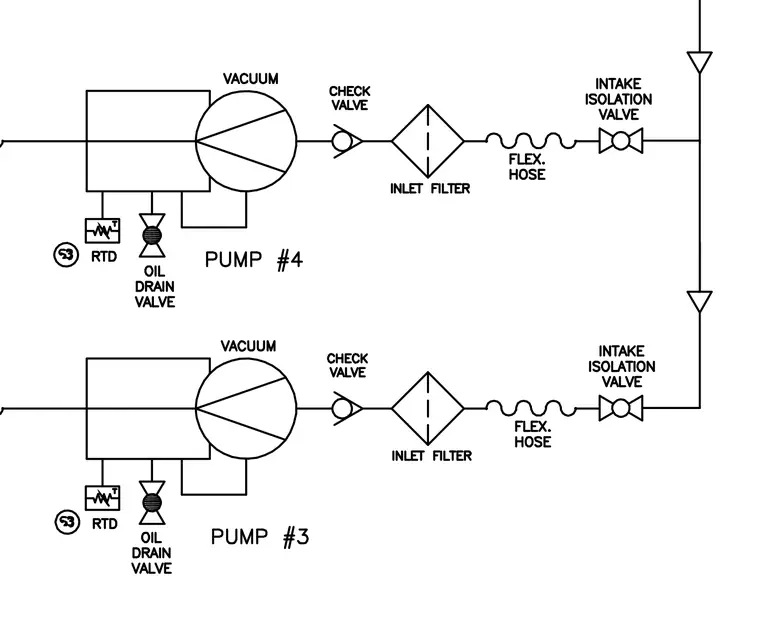

A piping arrangement for a medical vacuum package skid incorporates two pumps labeled Pump #3 and Pump #4. Each vacuum pump connects downstream through a check valve, an inlet filter, a flexible hose, and an intake isolation valve tied into the main medical vacuum header. An oil drain valve and a resistance temperature detector (RTD) with sensor #3 are connected directly beneath each pump assembly.
