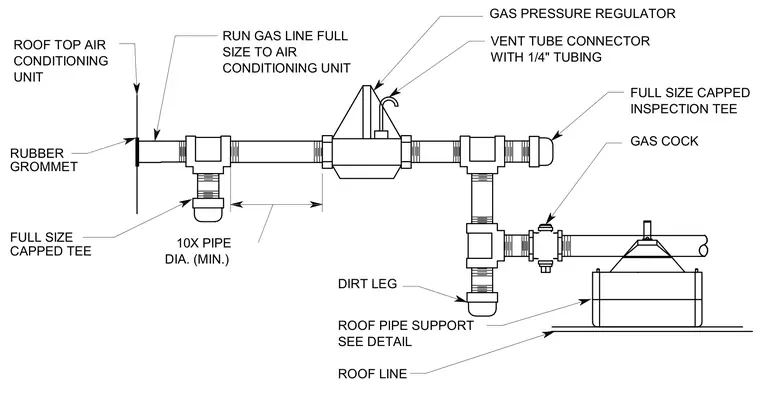

A gas pressure regulator is installed on a rooftop above the roof line and supported by a roof pipe support. The main supply line includes a gas cock, a dirt leg with a full size capped tee, and a vent tube connector fitted with one-quarter-inch tubing. A full size capped inspection tee is located downstream of the regulator, maintaining a minimum clearance of ten times the pipe diameter before connecting to the rooftop air conditioning unit through a rubber grommet.
ROOF TOP AIR CONDITIONING 10X PIPE DIA. (MIN.) INSPECTION TEE FULL SIZE CAPPED UNIT WITH 1/4" TUBING VENT TUBE CONNECTOR GAS COCK ROOF PIPE SUPPORT DIRT LEG SEE DETAIL ROOF LINE FULL SIZE CAPPED TEE RUBBER GROMMET RUN GAS LINE FULL SIZE TO AIR CONDITIONING UNIT GAS PRESSURE REGULATOR
