Architectural · P-956NC

Exterior Wall Assembly with Unistrut Equipment Mounting

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Facades / Cladding Waterproofing / Flashing Insulation

About this detail

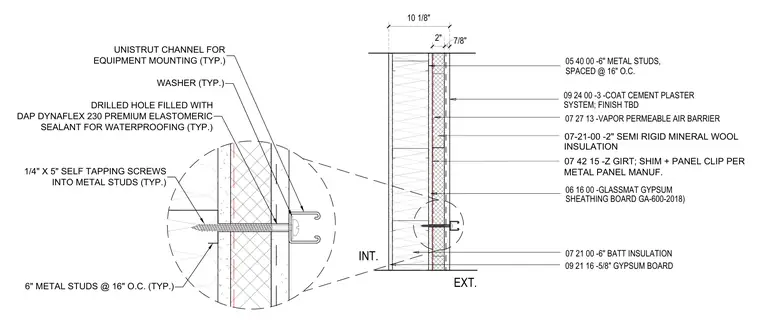

This exterior wall assembly features six-inch metal studs spaced at sixteen inches on center with interior five-eighths-inch gypsum board and six-inch batt insulation. The exterior side receives glass mat gypsum sheathing, a vapor-permeable air barrier, two-inch semi-rigid mineral wool insulation, Z-girts, shims, panel clips, and a three-coat cement plaster system with a finish to be determined. A Unistrut channel for equipment mounting is fastened through the assembly using one-quarter-inch by five-inch self-tapping screws with washers into the metal studs. Drilled holes are filled with premium elastomeric sealant for waterproofing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
