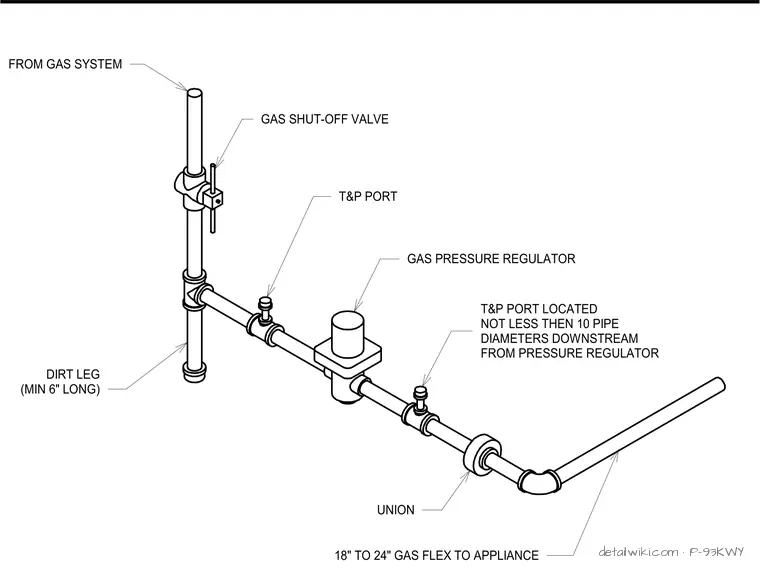

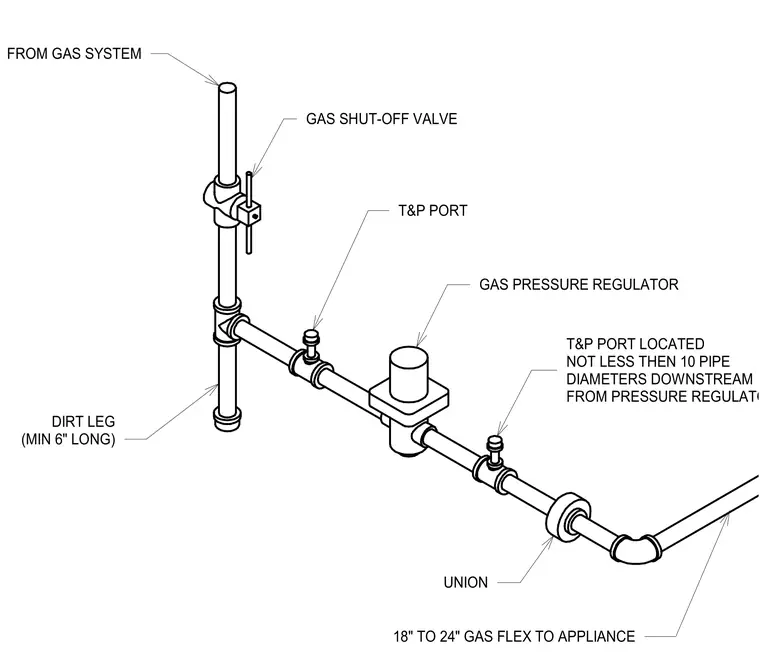

The gas supply line enters through a shut-off valve followed by a dirt leg with a minimum length of six inches. A gas pressure regulator is installed in the line, with test and purge ports located at least ten pipe diameters downstream from the regulator. A union is provided for maintenance access before the line transitions to an eighteen to twenty-four inch gas flexible connector for the final appliance hookup.
Text on the drawing
18" TO 24" GAS FLEX TO APPLIANCE UNION T&P PORT LOCATED NOT LESS THEN 10 PIPE DIAMETERS DOWNSTREAM FROM PRESSURE REGULATOR GAS PRESSURE REGULATOR T&P PORT DIRT LEG (MIN 6" LONG) GAS SHUT-OFF VALVE FROM GAS SYSTEM NO SCALE 7 23 11 00 GAS PIPING TO APPLIANCE
