Utility pipes crossing foundation walls require a sleeve with a one-inch clearance all around. No pipes are allowed to pass directly through the structural footing unless maintaining a minimum four-inch and maximum twenty-four-inch distance below the bottom of the footing, with thickened footing requirements when the pipe is less than twenty-four inches below the bottom of the footing. Parallel utility trenches must maintain an eighteen-inch clearance boundary from the footing with a two-to-one slope restriction, requiring verification with structural engineering.

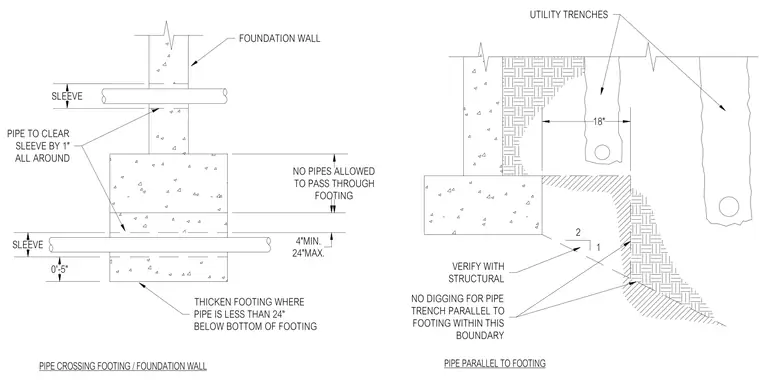

PIPE CROSSING FOOTING / FOUNDATION WALL PIPE PARALLEL TO FOOTING 1 2 18" NO PIPES ALLOWED TO PASS THROUGH FOOTING 4"MIN. 24"MAX. SLEEVE SLEEVE 0'-5" UTILITY TRENCHES VERIFY WITH STRUCTURAL NO DIGGING FOR PIPE TRENCH PARALLEL TO FOOTING WITHIN THIS BOUNDARY PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING
