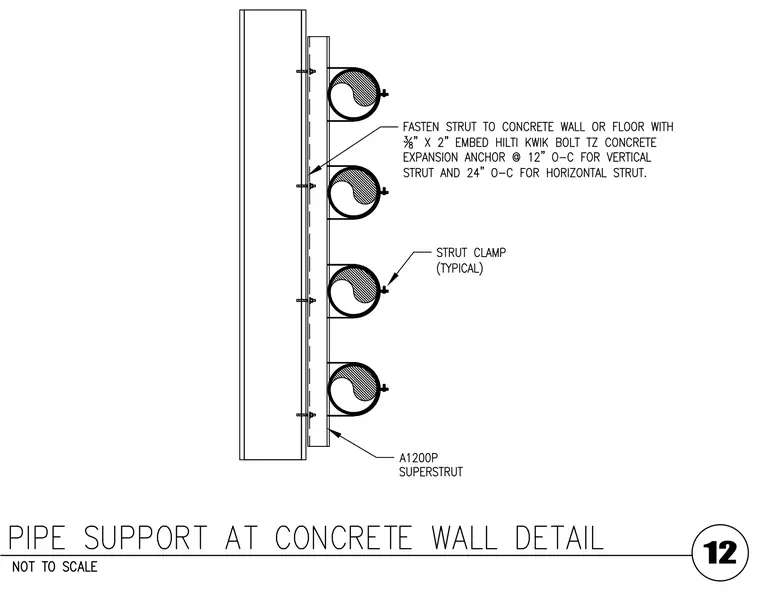

Vertical A1200P Superstrut channels are mounted directly to a concrete wall or floor using three-eighths-inch by two-inch embed Hilti Kwik Bolt TZ concrete expansion anchors spaced at twelve inches on-center for vertical struts and twenty-four inches on-center for horizontal struts. Multiple pipes are secured to the strut channel using typical strut clamps.
