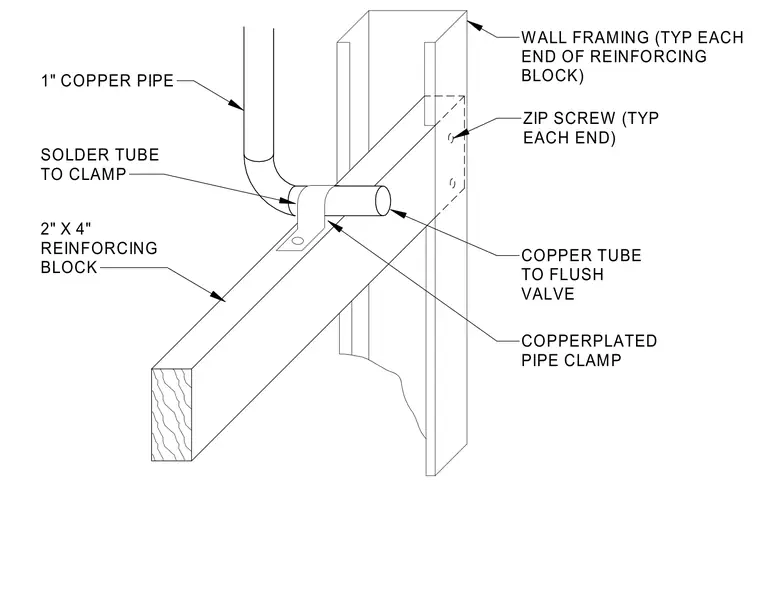

A one-inch copper pipe transitions to the flush valve and is secured by a copper-plated pipe clamp. The clamp is soldered to the tube and fastened to a two-by-four wood reinforcing block. Zip screws secure each end of the reinforcing block directly to the wall framing studs.
1" COPPER PIPE SOLDER TUBE TO CLAMP 2" X 4" REINFORCING BLOCK COPPERPLATED PIPE CLAMP COPPER TUBE TO FLUSH VALVE ZIP SCREW (TYP EACH END) WALL FRAMING (TYP EACH END OF REINFORCING BLOCK)
