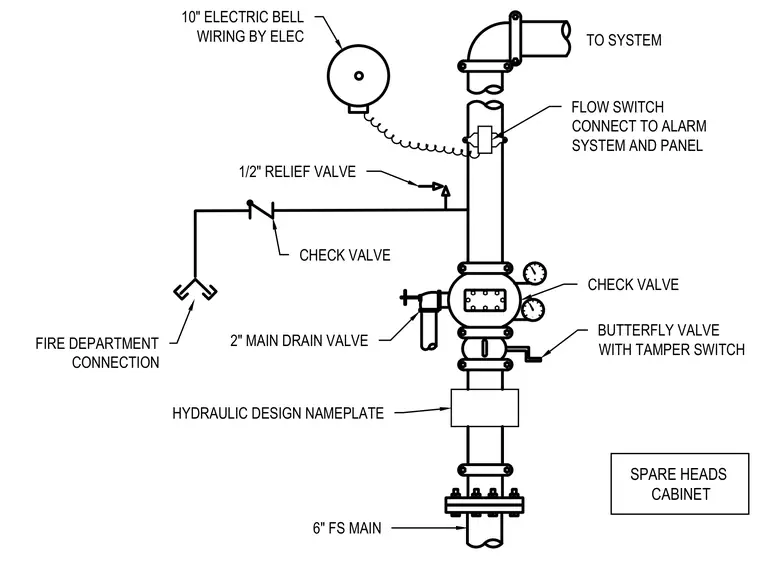

The six-inch fire sprinkler main feeds into the riser assembly equipped with a hydraulic design nameplate and a butterfly valve with a tamper switch. A main drain valve and check valves control flow and drainage, while a half-inch relief valve provides overpressure protection. A flow switch connects to the alarm system and panel, paired with a ten-inch electric bell wired by the electrical contractor. A fire department connection ties into the system through a check valve, and a spare heads cabinet is provided nearby.
SPARE HEADS CABINET 6" FS MAIN HYDRAULIC DESIGN NAMEPLATE FIRE DEPARTMENT CONNECTION 2" MAIN DRAIN VALVE CHECK VALVE BUTTERFLY VALVE WITH TAMPER SWITCH 10" ELECTRIC BELL WIRING BY ELEC 1/2" RELIEF VALVE CHECK VALVE TO SYSTEM FLOW SWITCH CONNECT TO ALARM SYSTEM AND PANEL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
