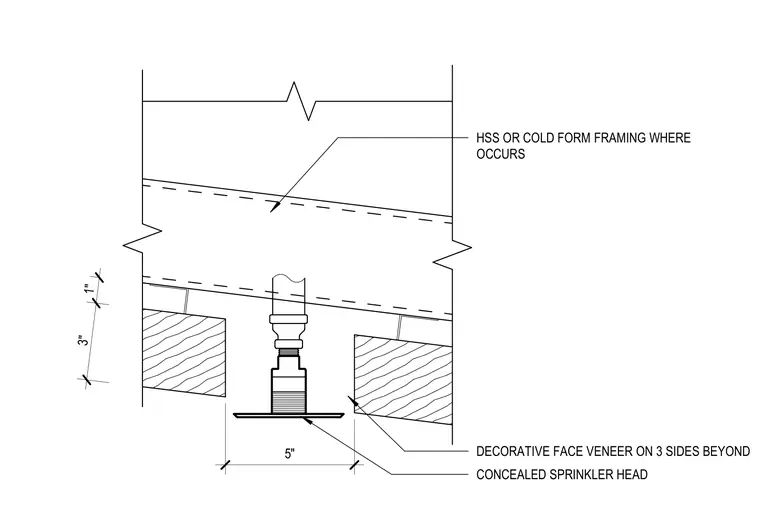

A concealed sprinkler head penetrates through a decorative face veneer assembly supported on three sides beyond hollow structural section or cold-formed framing. The sprinkler drop sits within a five-inch finished opening, with a one-inch vertical clearance zone above the decorative trim. The assembly coordinates fire protection piping integration with architectural ceiling finishes and structural framing members.
DECORATIVE FACE VENEER ON 3 SIDES BEYOND HSS OR COLD FORM FRAMING WHERE OCCURS 3" 1" 5" CONCEALED SPRINKLER HEAD
