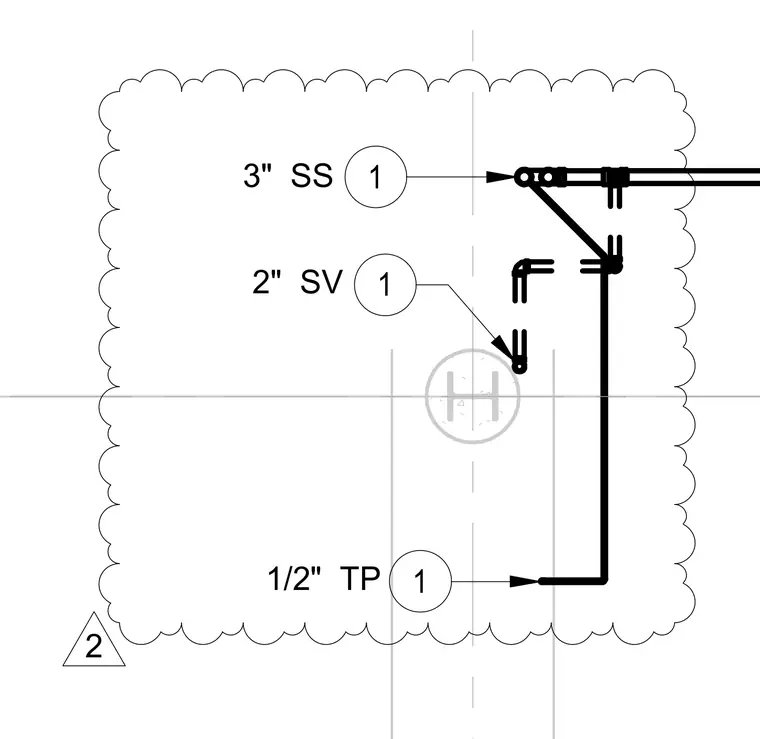

A 3-inch sanitary stack connects to horizontal drainage lines. A 2-inch vent line ties into the vertical stack assembly. A 1/2-inch temperature pipe runs alongside the plumbing lines.
