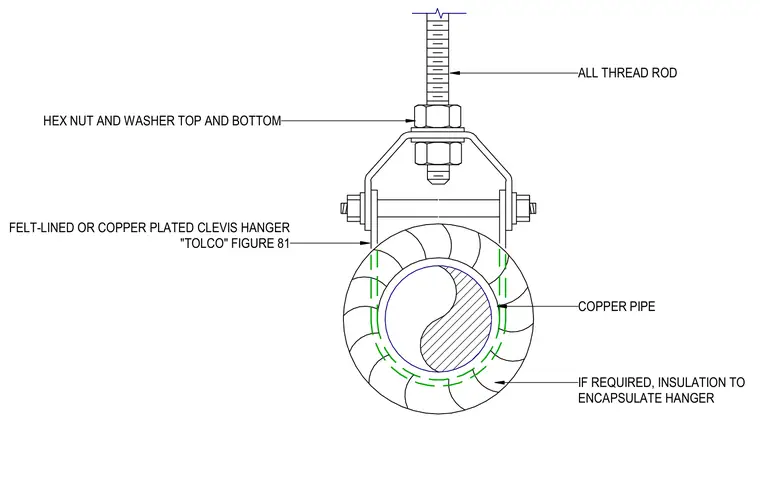

A copper pipe is suspended by a felt-lined or copper-plated clevis hanger, specifically a Tolco Figure 81 model. The hanger is connected overhead via an all-thread rod secured with top and bottom hex nuts and washers. Insulation is applied to encapsulate the hanger if required.
ALL THREAD ROD COPPER PIPE HEX NUT AND WASHER TOP AND BOTTOM IF REQUIRED, INSULATION TO ENCAPSULATE HANGER FELT-LINED OR COPPER PLATED CLEVIS HANGER "TOLCO" FIGURE 81
