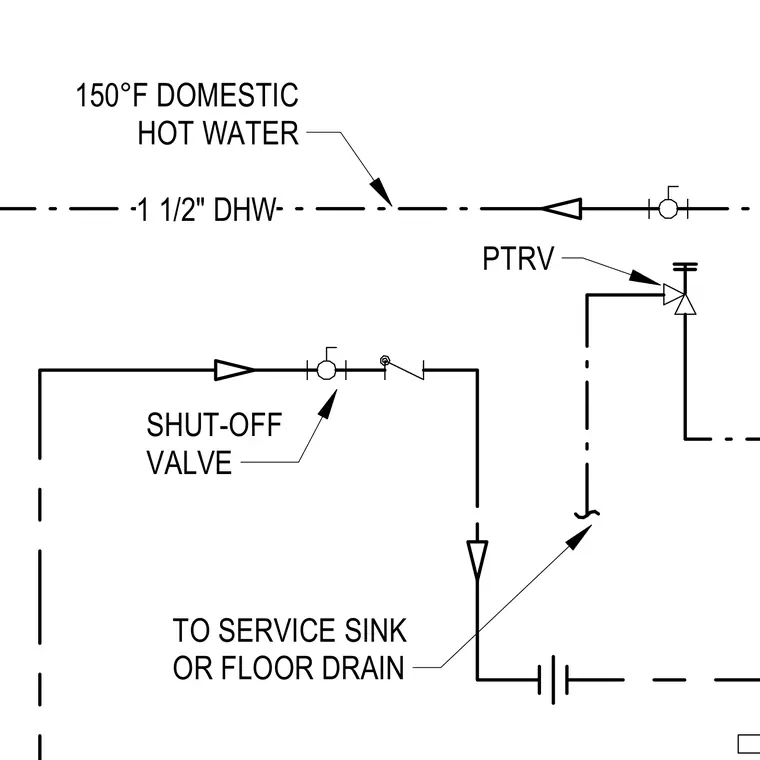

A one-and-one-half-inch domestic hot water line supplies fluid at one hundred fifty degrees Fahrenheit. A pressure-temperature relief valve is installed on the line alongside a shut-off valve. The relief discharge routes down to a service sink or floor drain.
TO SERVICE SINK OR FLOOR DRAIN SHUT-OFF VALVE PTRV 150°F DOMESTIC HOT WATER 1 1/2" DHW
