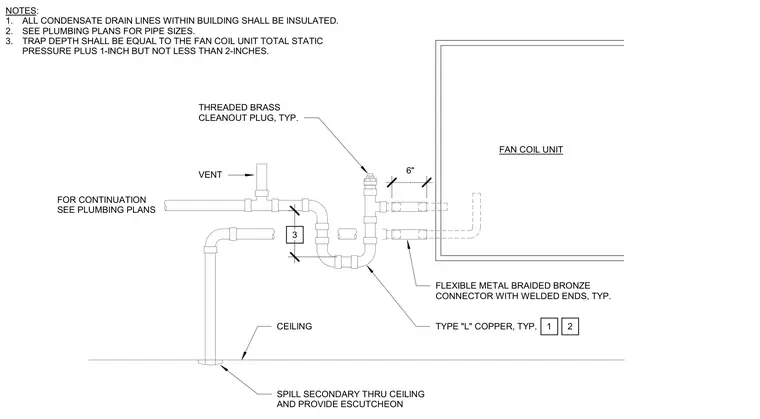

A flexible metal braided bronze connector with welded ends attaches directly to the fan coil unit. Type L copper piping routes the condensate through a properly sized trap and a threaded brass cleanout plug. A vent line ties into the drainage piping before continuing to the plumbing mains. A secondary spill line extends through the ceiling with an escutcheon.
. 3 NOTES: 1. ALL CONDENSATE DRAIN LINES WITHIN BUILDING SHALL BE INSULATED. 2. SEE PLUMBING PLANS FOR PIPE SIZES. 3. TRAP DEPTH SHALL BE EQUAL TO THE FAN COIL UNIT TOTAL STATIC PRESSURE PLUS 1-INCH BUT NOT LESS THAN 2-INCHES. FLEXIBLE METAL BRAIDED BRONZE CONNECTOR WITH WELDED ENDS, TYP. THREADED BRASS CLEANOUT PLUG, TYP. FAN COIL UNIT TYPE "L" COPPER, TYP. 1 2 VENT FOR CONTINUATION SEE PLUMBING PLANS CEILING SPILL SECONDARY THRU CEILING AND PROVIDE ESCUTCHEON 6" .
