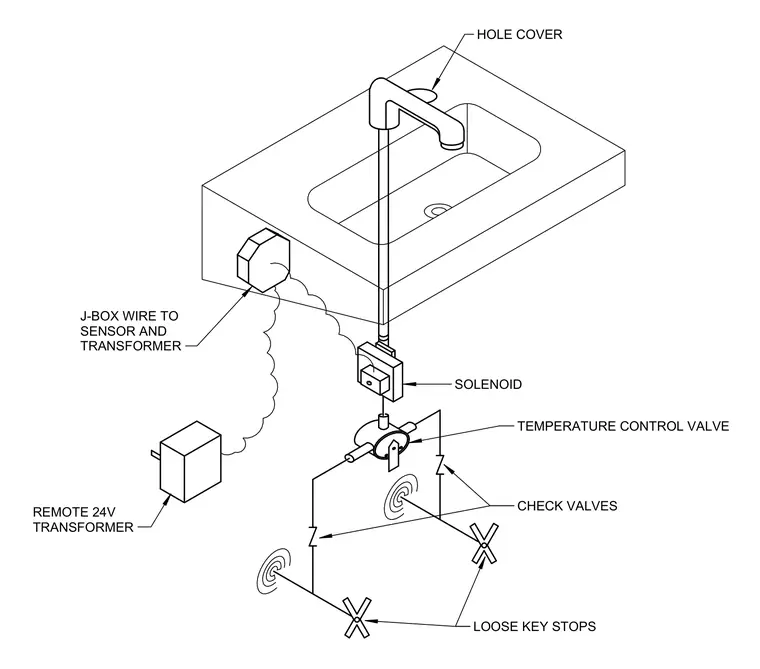

The sensor-activated lavatory plumbing assembly integrates a faucet with a hole cover, a solenoid valve, and a temperature control valve fed by supply lines fitted with loose key stops and check valves. A remote 24V transformer connects to the sensor and solenoid via wiring routed through a junction box.
HOLE COVER REMOTE 24V TRANSFORMER SOLENOID TEMPERATURE CONTROL VALVE LOOSE KEY STOPS CHECK VALVES J-BOX WIRE TO SENSOR AND TRANSFORMER
