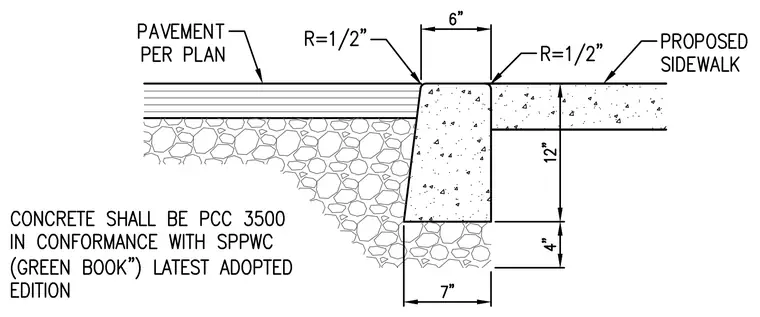

A concrete curb has a 6-inch top width, a 7-inch base width, and a 12-inch depth resting on a 4-inch aggregate base. The curb features 1/2-inch rounded top edges transitioning to the proposed sidewalk on one side and pavement per plan on the other. Concrete shall be PCC 3500 in conformance with SPPWC Green Book latest adopted edition.
