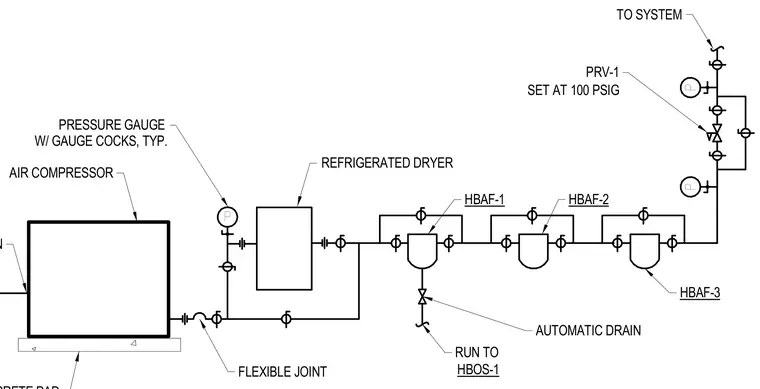

An air compressor rests on a concrete pad with a flexible joint on the discharge line leading into a refrigerated dryer. The compressed air stream passes through sequential inline filters designated HBAF-1, HBAF-2, and HBAF-3, each equipped with automatic drains running to HBOS-1. A pressure-reducing valve designated PRV-1 is set at 100 PSIG prior to distribution to the system. Pressure gauges with gauge cocks are installed throughout the piping run for system monitoring.
P P P RUN TO HBOS-1 TO SYSTEM HBAF-2 HBAF-1 REFRIGERATED DRYER AIR COMPRESSOR AUTOMATIC DRAIN RECEIVER BLOWDOWN FLEXIBLE JOINT PRESSURE GAUGE W/ GAUGE COCKS, TYP. PRV-1 SET AT 100 PSIG HBAF-3
