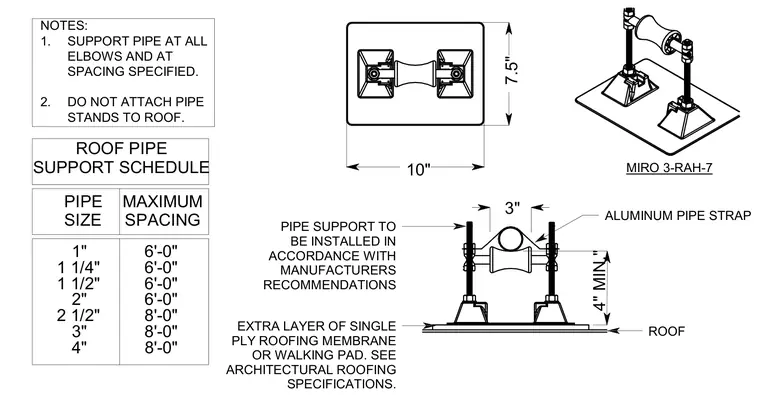

Roof pipe support assembly utilizing a Miro 3-RAH-7 model resting on an extra layer of single-ply roofing membrane or walking pad over the roof. The support features dual stands maintaining a four-inch minimum clearance, connected by an aluminum pipe strap securing the piping. Maximum span spacing is regulated by pipe size ranging from one inch to four inches. Pipe stands remain unattached to the roof structure and require support at all elbows.
10" 7.5" 3" PIPE SIZE MAXIMUM SPACING ROOF PIPE SUPPORT SCHEDULE 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 6'-0" 6'-0" 6'-0" 6'-0" 8'-0" 8'-0" 4" 8'-0" 4" MIN." ALUMINUM PIPE STRAP MIRO 3-RAH-7 NOTES: 1. SUPPORT PIPE AT ALL ELBOWS AND AT SPACING SPECIFIED. 2. DO NOT ATTACH PIPE STANDS TO ROOF. ROOF PIPE SUPPORT TO BE INSTALLED IN ACCORDANCE WITH MANUFACTURERS RECOMMENDATIONS EXTRA LAYER OF SINGLE PLY ROOFING MEMBRANE OR WALKING PAD. SEE ARCHITECTURAL ROOFING SPECIFICATIONS.
