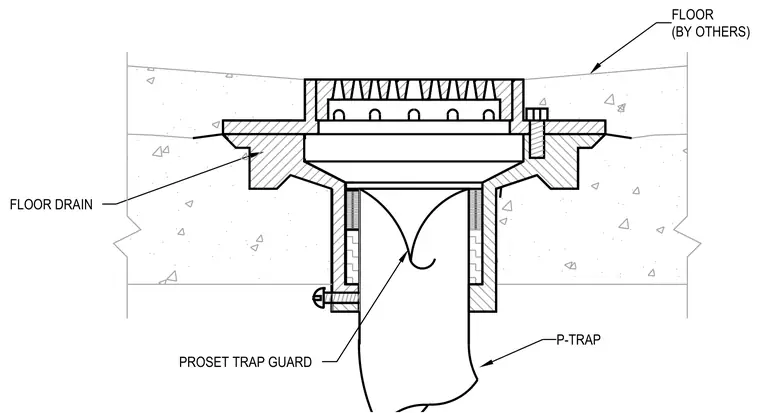

A floor drain is set into a concrete floor structure built by others. The drain body connects to a P-trap located directly below the slab. A Proset trap guard is inserted into the drain outlet to prevent sewer gas intrusion.
FLOOR (BY OTHERS) P-TRAP FLOOR DRAIN PROSET TRAP GUARD /wuwwuuum bn. a o o o a ^7 s ss K m
