Flexible tubing runs from equipment and transitions from polytubing to PVC or stainless steel piping. Unistrut channels are mounted on the floor slab with typical pipe clamps to support horizontal pipe runs. Piping terminates above the floor sink with a required air gap of one and a half times the pipe diameter to prevent backflow.

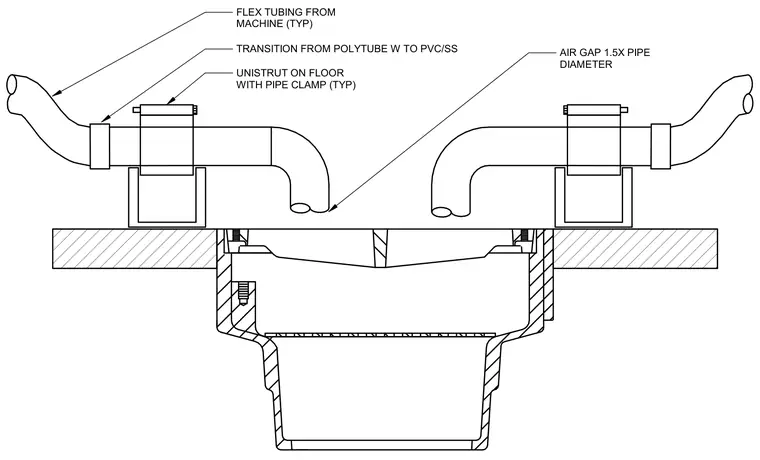

UNISTRUT ON FLOOR WITH PIPE CLAMP (TYP) FLEX TUBING FROM MACHINE (TYP) TRANSITION FROM POLYTUBE W TO PVC/SS AIR GAP 1.5X PIPE DIAMETER
