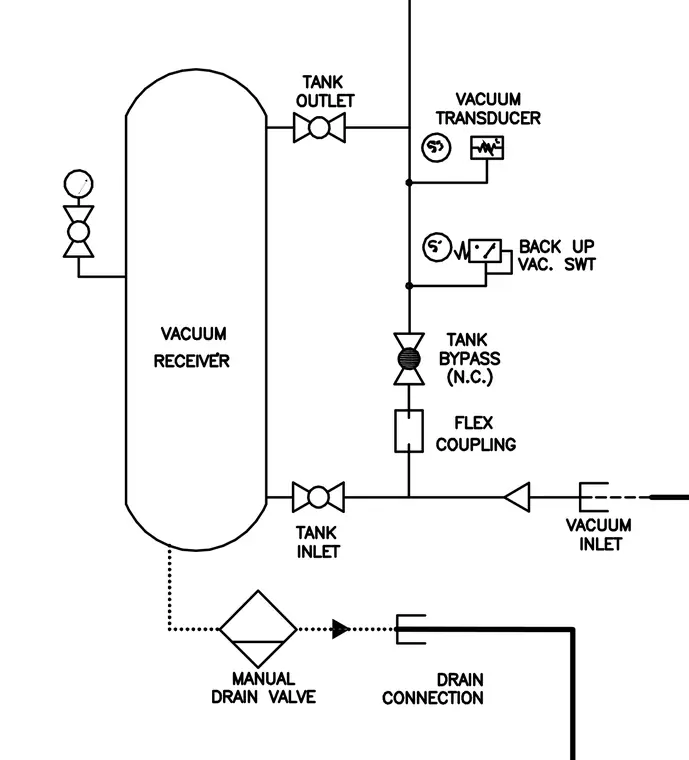

The vacuum receiver tank connects to a vacuum inlet via a tank inlet valve and a flex coupling. A normally closed tank bypass valve provides an alternate route around the tank inlet assembly. The tank outlet line features a vacuum transducer and a backup vacuum switch. A manual drain valve connects from the bottom of the receiver to a drain connection.
