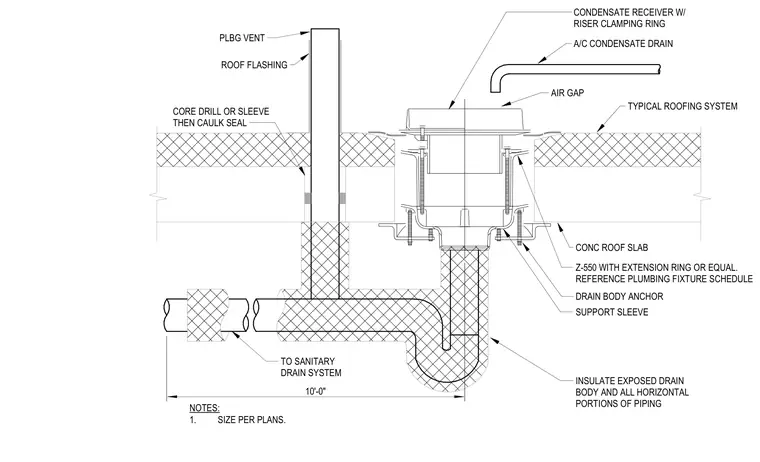

A roof condensate drain assembly penetrates a concrete roof slab with a typical roofing system. The drain body is supported by a Z-550 model or equal with an extension ring, drain body anchors, and a support sleeve. An air gap separates the incoming air conditioning condensate drain from the condensate receiver equipped with a riser clamping ring. A plumbing vent with roof flashing penetrates the slab through a core-drilled hole or sleeve sealed with caulk. The exposed drain body and all horizontal portions of the piping leading to the sanitary drain system are fully insulated.
10'-0" CORE DRILL OR SLEEVE THEN CAULK SEAL PLBG VENT ROOF FLASHING A/C CONDENSATE DRAIN AIR GAP TYPICAL ROOFING SYSTEM CONC ROOF SLAB Z-550 WITH EXTENSION RING OR EQUAL. REFERENCE PLUMBING FIXTURE SCHEDULE DRAIN BODY ANCHOR SUPPORT SLEEVE INSULATE EXPOSED DRAIN BODY AND ALL HORIZONTAL PORTIONS OF PIPING TO SANITARY DRAIN SYSTEM NOTES: 1. SIZE PER PLANS. CONDENSATE RECEIVER W/ RISER CLAMPING RING
