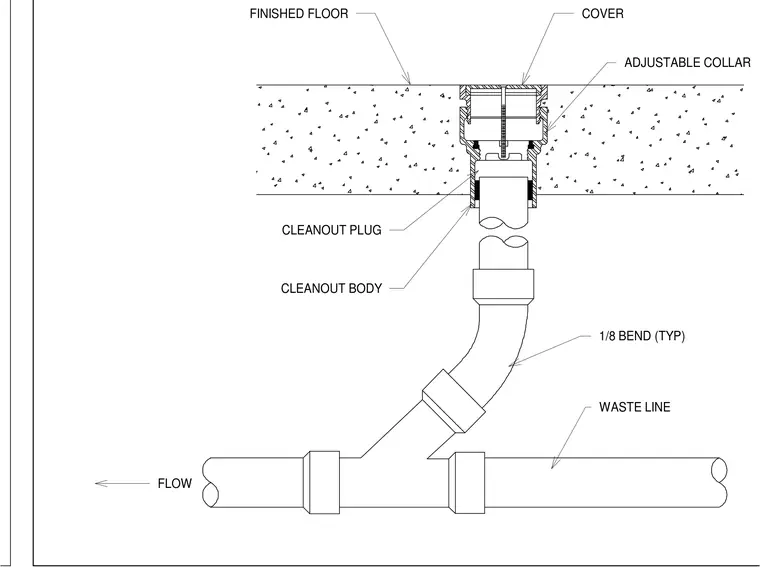

A cleanout body connects to a waste line via an eighth bend fitting with the flow direction indicated. An adjustable collar houses the cleanout plug and sits flush with the finished floor level, topped by a removable cover.
1/8 BEND (TYP) ADJUSTABLE COLLAR COVER FINISHED FLOOR CLEANOUT PLUG CLEANOUT BODY FLOW WASTE LINE
