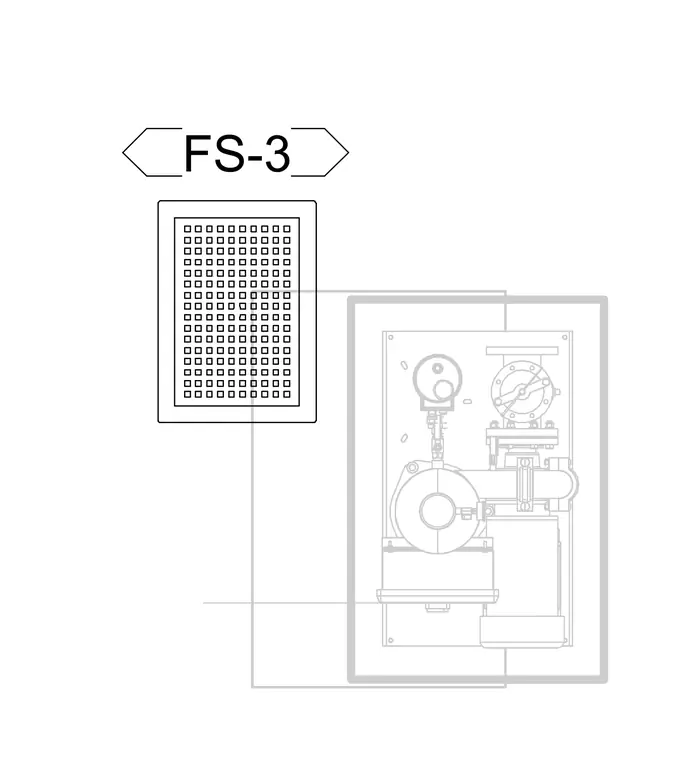

Floor sink assembly FS-3 consists of a perforated square drainage grate paired with an underlying body containing connected piping and valving. The unit is installed flush with the finished floor to collect liquid waste.
