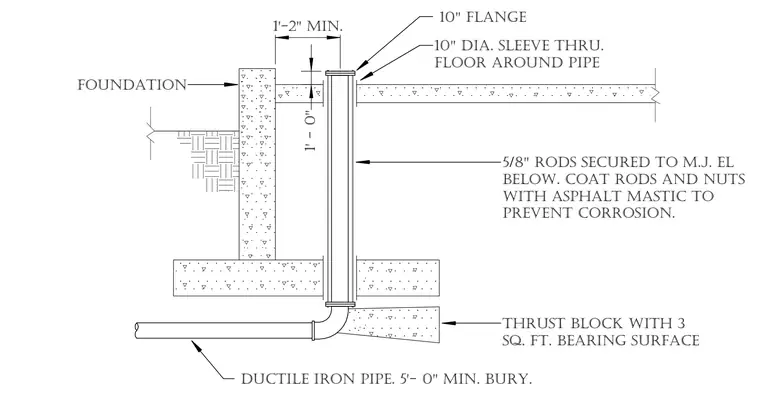

A foundation ductile iron pipe enters the building below grade with a minimum bury of five feet, turning upward via a mechanical joint elbow supported by a concrete thrust block with three square feet of bearing surface. Five-eighths-inch tie rods secure the pipe to the mechanical joint below and are coated with asphalt mastic to prevent corrosion. The vertical pipe rises through the building interior, passing through a ten-inch diameter sleeve in the concrete floor slab with a ten-inch flange at the top.
FOUNDATION DUCTILE IRON PIPE. 5'- 0" MIN. BURY. THRUST BLOCK WITH 3 SQ. FT. BEARING SURFACE 10" FLANGE 5/8" RODS SECURED TO M.J. EL BELOW. COAT RODS AND NUTS WITH ASPHALT MASTIC TO PREVENT CORROSION. 10" DIA. SLEEVE THRU. FLOOR AROUND PIPE 1'-2" MIN. 1' - 0"
