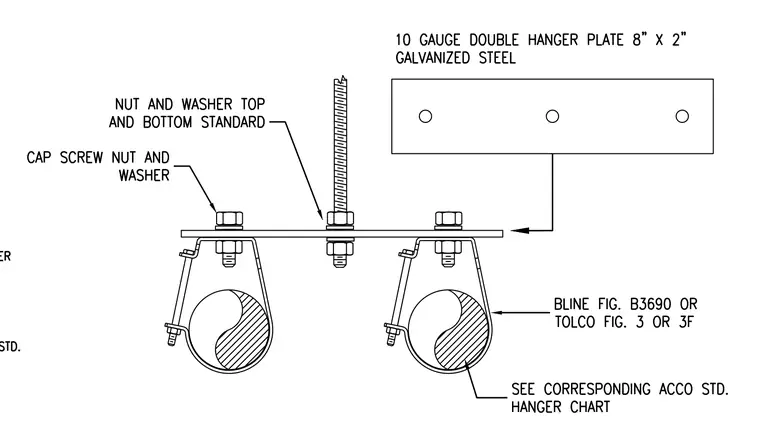

Two suspended pipes are supported by BLine Fig. B3690 or Tolco Fig. 3 or 3F hanger loops secured to a 10 gauge double hanger plate measuring 8 inches by 2 inches made of galvanized steel. The plate is suspended from a threaded rod fastened with standard nuts and washers at the top and bottom. Cap screws, nuts, and washers secure the individual pipe hanger straps to the horizontal steel plate. Pipe sizing and selection correspond to the ACCO standard hanger chart.
