The floor clean-out features a clean-out and access cover set flush with the floor line above an eighth bend fitting, with the balance of piping matching the clean-out to grade. The clean-out to grade assembly includes a brass clean-out plug with a countersunk head at finish grade, installed over a six-inch concrete pad that is trowel smoothed and edged. An eighth bend connects the clean-out to a waste line of length to suit, with an additional eighth bend applied if the clean-out occurs at the end of the line.

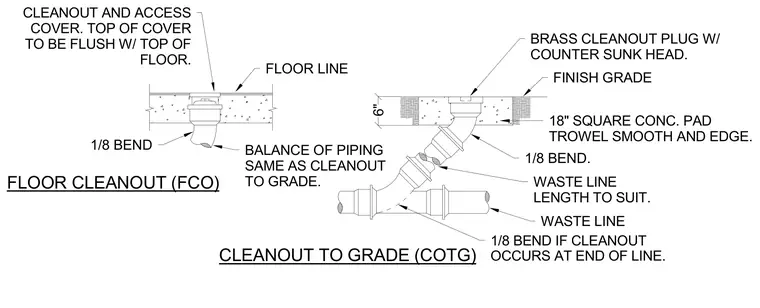

FLOOR CLEANOUT (FCO) CLEANOUT TO GRADE (COTG) 6" CLEANOUT AND ACCESS COVER. TOP OF COVER TO BE FLUSH W/ TOP OF FLOOR. FLOOR LINE FINISH GRADE BRASS CLEANOUT PLUG W/ COUNTER SUNK HEAD. 1/8 BEND BALANCE OF PIPING SAME AS CLEANOUT TO GRADE. 18" SQUARE CONC. PAD TROWEL SMOOTH AND EDGE. 1/8 BEND. WASTE LINE LENGTH TO SUIT. WASTE LINE 1/8 BEND IF CLEANOUT OCCURS AT END OF LINE.
