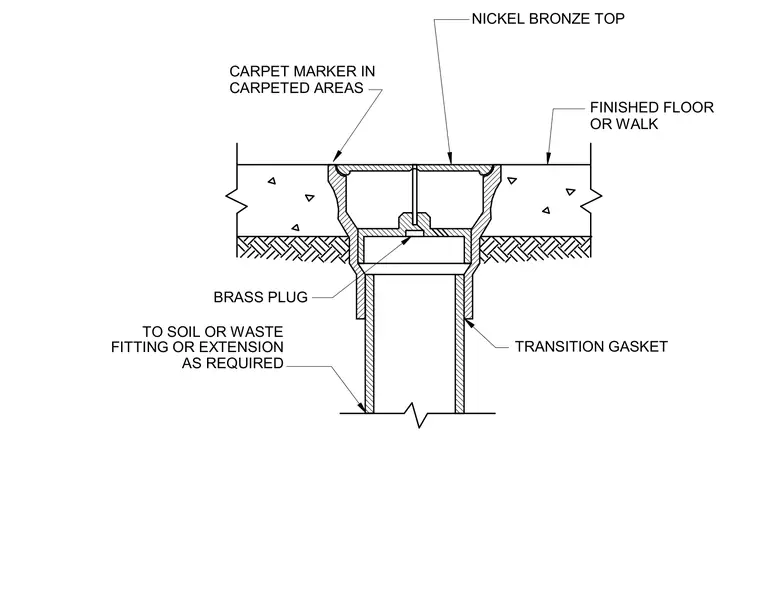

A floor cleanout assembly installs flush with the finished floor or walk and connects to a soil or waste fitting or extension as required. The assembly features a nickel bronze top and a brass plug set within the floor slab. A carpet marker is included for carpeted areas, and a transition gasket seals the connection to the underlying pipe.
TO SOIL OR WASTE FITTING OR EXTENSION AS REQUIRED BRASS PLUG CARPET MARKER IN CARPETED AREAS TRANSITION GASKET FINISHED FLOOR OR WALK NICKEL BRONZE TOP
